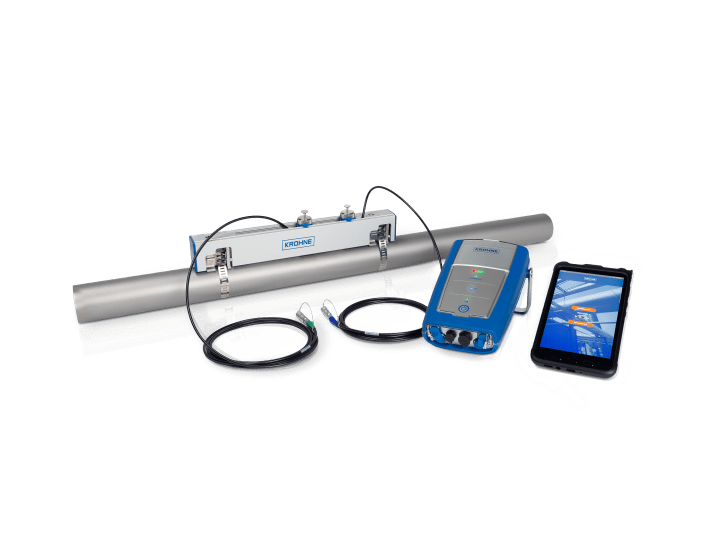

OPTISONIC 6300 P
Ultrasonic clamp-on flowmeter for temporary flow measurement of liquids
- Portable, battery-powered meter used to collect additional flow data or for cost-effective on-site verification of inline flowmeters
- For pipes DN15…4000 / ½…160"; up to +120°C / +248°F
- Portable signal converter with integrated data logger
- Commissioning, monitoring and data analysis via a mobile smart device using the OPTISONIC 6300 P mobile app (for Android or iOS) in combination with a USB cable or wireless Bluetooth connection®
Overview
The OPTISONIC 6300 P is a portable, battery-powered ultrasonic clamp-on flowmeter for temporary flow measurement of (non-)conductive liquids in virtually all industries. It can be used at virtually any location without interrupting the process or cutting pipes. Due to its flexibility, the flowmeter is equally suited for comparative measurements on stationary measuring equipment (e.g. pumps, flowmeters etc.) or for use as a short-term replacement of faulty devices. The clamp-on flowmeter comes with a measurement option for thermal energy applications as standard.
Features & Options
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Flexible clamp-on flow measurement with battery-powered signal converter and datalogger
- Bi-directional measurement where inline measurement is not possible or desirable
- Easy installation without process interruption: zero impact on/risk to the process and no cutting of pipes necessary
- Real-time measurement or data-logging
- 2-channel converter for dual path or dual pipe measurements
- User-friendly operation using a mobile smart device plus OPTISONIC 6300 P mobile app:
- Data transfer via secure wireless Bluetooth® or USB cable connection
- User-friendly, graphical installation wizard for immediate start-up
- Many options for collecting, monitoring, analysing and storing measurement data
- Free download for Android and iOS
- Easy and flexible sensor mounting using mounting rails
- Click and turn mechanism on fixing units for quick and easy installation or removal
- Energy measurement with PT100 and I/O box
- Useful accessories available from one source, e.g. factory configured tablet, cable extensions, magnetic fixation units, thickness gauge, etc.
- Delivered in hardcase (flight case) or portable soft case with organiser trays
*KROHNE offers a rental service for this instrument in many countries. Please check availability by submitting your request here using the "Click here for support" button.*
