OPTIMASS 1400

Coriolis mass flowmeter for universal applications and process control

  • Mass, density and volume flow of gases and liquids; maintains operation even with entrained gas of up to 100%

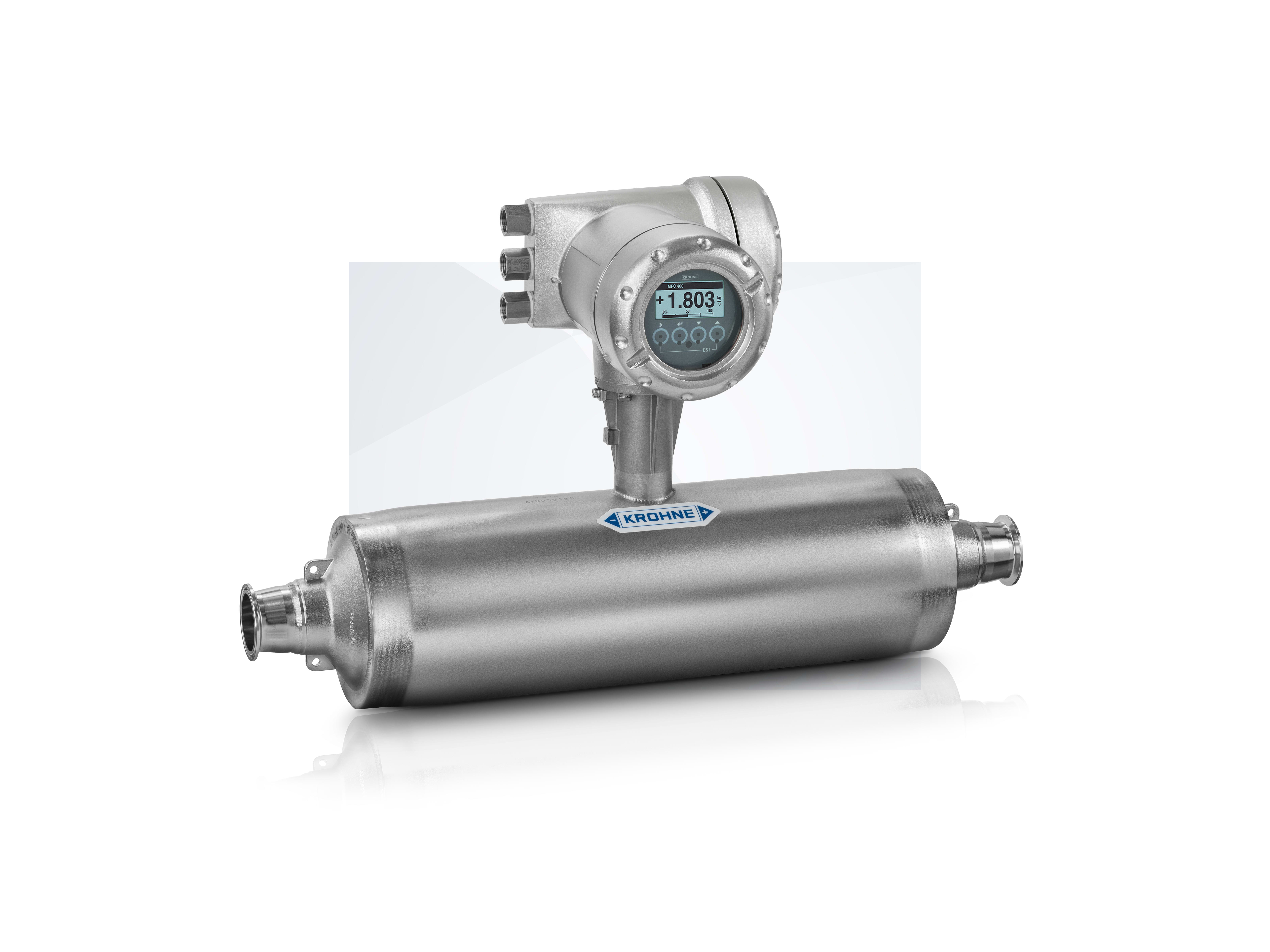

  • Also certified for hygienic use
  • Flange: DN15…100 / 12…4", max. PN100 / ASME Cl 600; many hygienic fittings
  • 3 x 4…20 mA, HART®7, FF, Profibus-PA/DP, Modbus, PROFINET etc.
  • Technology icon for EGM Entrained Gas Management

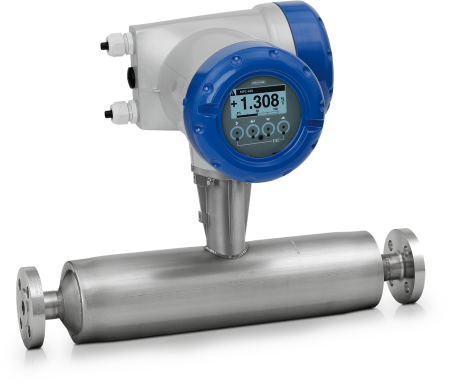

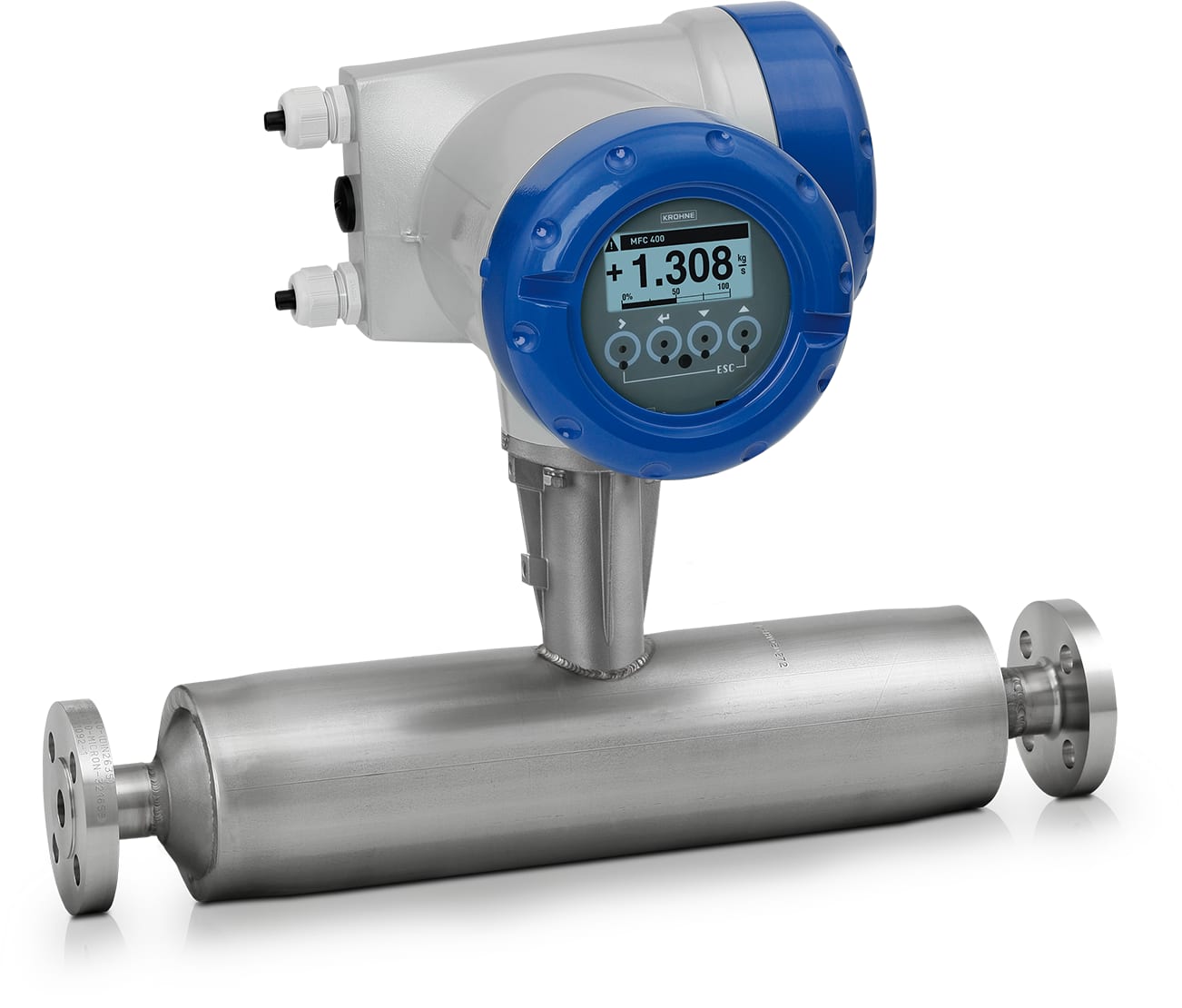

OPTIMASS 1400 C – Compact version with flange

OPTIMASS 1400 C Coriolis mass flowmeter – Compact version with flange

The OPTIMASS 1400 is a cost-effective twin straight tube Coriolis mass flowmeter for a wide range of standard applications with gases and liquids (up to 170,000 kg/h or 6,235 lb/min). The meter features Entrained Gas Management (EGMTM) for liquid applications, providing reliable readings even in the event of gas entrainment of up to 100%. In this way, the Coriolis meter enables continuous and uninterrupted measurement of volume flow and mass, density and temperature – even at difficult process conditions with 2-phase flow.

The OPTIMASS 1400 features an optimised flow splitter for minimum pressure loss and can be drained and cleaned easily. Next to flange process connections it supports a wide range of standard hygienic connections for food and beverage applications. Like with all other KROHNE Coriolis mass flowmeters there are no installation restrictions as the OPTIMASS 1400 is immune to crosstalk/line vibrations and can thus be installed in series or in parallel. It is also approved for use in hazardous areas. The Coriolis mass flowmeter provides enhanced diagnostics (NE 107) and comes with various digital communication options.

Product highlights

  • Twin straight tube design
  • Entrained Gas Management (EGMTM): No loss of measurement with gas entrainment up to 100%
  • Fast and completely digital signal processing
  • Best-in-class price/performance ratio
  • High accuracy mass, density and volume flow measurement (±0,15% of MV)
  • Extensive sensor and process diagnostics (incl. NE 107)
  • Integrated temperature measurement
  • Optimised flow splitter for low pressure loss
  • Optional PED approved secondary pressure containment up to 100 barg / 1450 psig
  • Optional insulation, heating jacket or purge ports
  • Immunity to crosstalk: resistant to installation and process effects
  • On-site verification of flowmeter with OPTICHECK service tool

Typical applications

General

  • Standard process applications up to 130°C / 266°F
  • Measurement of liquids, gases and gas entrained liquids
  • Portable installations on trucks, rail tankers, portable rigs etc.
  • Applications with very low operating densities (<10 kg/m³)

Food and beverage industry

  • Measurement of flow, density, specific gravity in brewing processes
  • Flow measurement of beverages and fruit juices
  • Dairy products
  • Fat, oily and greasy products
  • Dosing of additive food components

Pharmaceutical industry

  • Batching, dosing, filling
  • Solvent extraction
  • Ultrapure water ring-main measurement

Chemical and other process industries

  • Bulk loading
  • Batching to reactors

Marine industry

  • Fuel consumption measurement

Pulp and paper industry

  • Batching and dosing of additives, bleaches and colourants

Water and wastewater industry

  • Flocculant dosing
