OPTIFLUX 1300

Electromagnetic flowmeter for OEM applications, dosing systems and compact skids

  • Economical flow measurement of liquids (≥5 μS/cm) with solid content (≤70%)
  • -25…+120°C / -13…+248°F
  • Wafer-style design: DN10…150 / ⅜…6", max. PN40 / ASME Cl 300
  • 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET

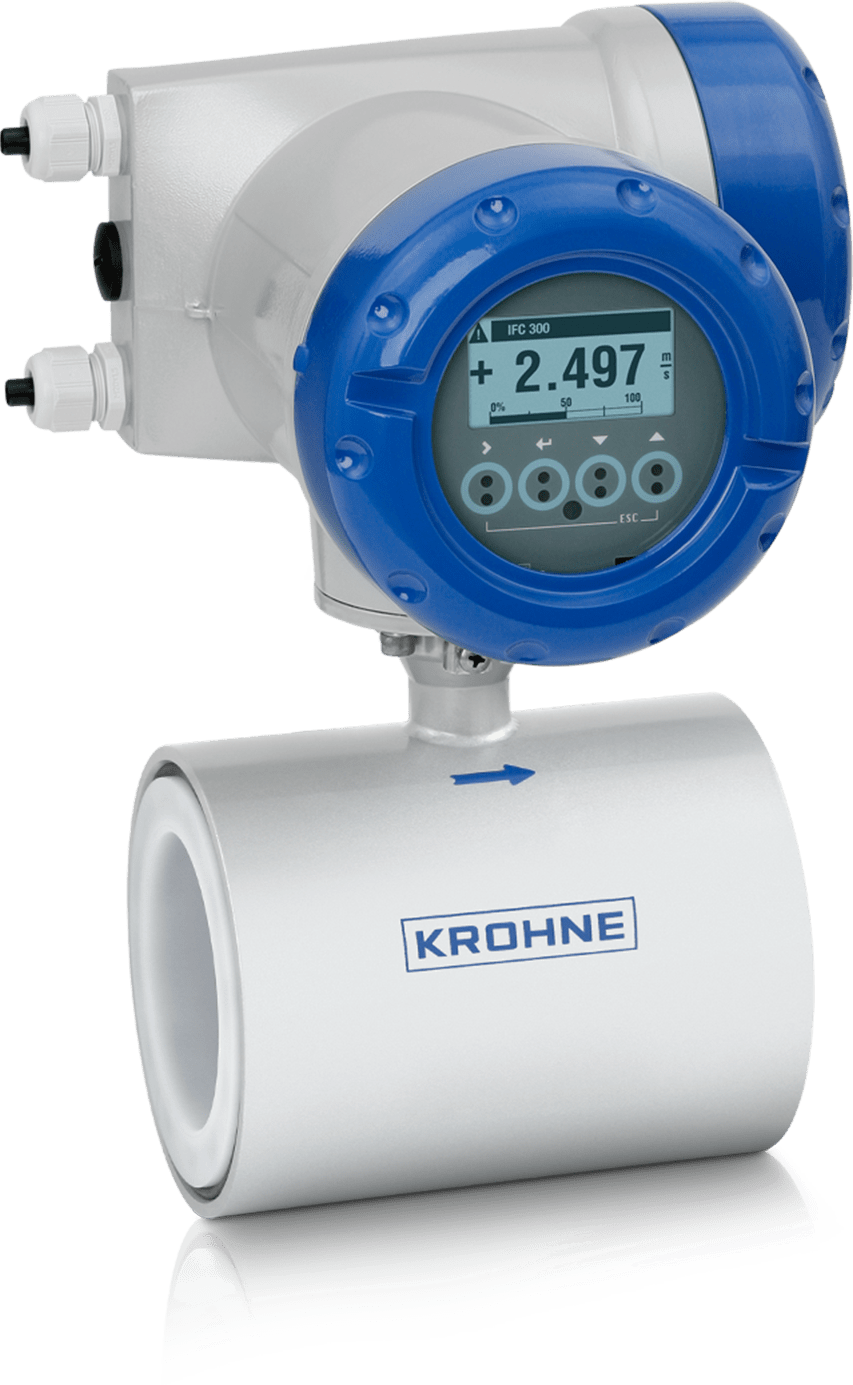

OPTIFLUX 1300 C – Compact version

OPTIFLUX 1300 C Electromagnetic flowmeter – Compact version

The OPTIFLUX 1300 is an electromagnetic flowmeter (EMF) with lightweight wafer-style design. The meter is an economical solution for applications with conductive liquids (≥ 5 μS/cm) and higher solid content (up to 70%). Unlike the OPTIFLUX 1100, the OPTIFLUX 1300 offers a better accuracy. The flowmeter already meets the demands of many applications in various industries. It has established itself as the preferred solution for OEM machinery applications, dosing systems, compact skids, chemical handling systems or pump and firefighting systems.

The OPTIFLUX 1300 features a reinforced PFA liner and Hastelloy® electrodes that guarantee excellent chemical resistance and a large temperature range (up to +120°C / +248°F). The EMF has no internal moving parts, does not require maintenance and is insensitive to vibrations. It comes with various digital communication options and is approved for use in hazardous areas. A full on-site verification of the flowmeter without process interruption can be carried out using the OPTICHECK service tool.

Product highlights

  • Bi-directional flow measurement over a wide dynamic range (turndown ratio: 1000:1)
  • Lightweight and compact wafer-style ("sandwich") design for space saving installation
  • Standard measurement accuracy: ±0.3% or ±1mm/s of measured value (MV)
  • Extensive sensor and process diagnostics (incl. NE 107)
  • Reinforced PFA liner: Smooth surface, excellent chemical resistance
  • Pipe cross-section without restrictions for slurries with non abrasive solid particles
  • No maintenance required
  • On-site verification of flowmeter with OPTICHECK service tool

Typical applications

General

  • More demanding water applications (potable, raw, salt water, wastewater, heated and cooled water)
  • Fiscal metering (custody transfer)

Water and wastewater industry

  • Abstraction and irrigation
  • Monitoring of distribution networks
  • Water circulation and treatment systems

Agricultural industry

  • Sludge, manure, mud, slurry

Machinery and apparatus (OEM industry)

  • Batching, dosing and mixing systems
  • Compact and mobile skids
  • Chemical handling systems
  • Firefighting systems, foam mixing, control of sprinkler systems
  • Filtration systems
  • Pump wagons

HVAC industry

  • Heat transfer and cooling systems
  • Pump control

Accessories for this product

OPTICHECK Master

Handheld for in-depth verification, device commissioning and monitoring

  • On-site performance check and verification (level 0,1,2) without process interruption
  • Convenient commissioning of field devices, e.g. zero calibration
  • Detailed reports for proof test documentation of safety loops acc. to IEC 61508/61511, and for quality management systems (ISO 9001)

View product details

OPTICHECK DTM

DTM for advanced device verification and commissioning

  • Usable with any FDT frame application from the control room or on site
  • Advanced verification (level 0,1) without process interruption
  • Detailed reports for proof test documentation of safety loops acc. to IEC 61508/61511, and for quality management systems (ISO 9001)

View product details
