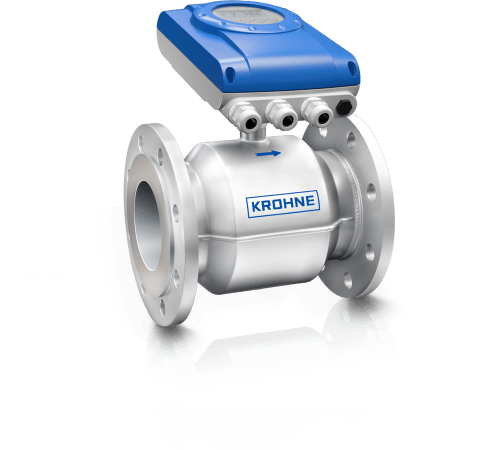

WATERFLUX 3050

Electromagnetic flowmeter for basic water applications

  • Cost-effective measurement of potable, raw and irrigation water
  • Extra isolation of electronics for use in high humidity areas
  • Flange: DN25…600 / 1…24", max. PN16 / ASME Cl 150; others on request
  • 4…20 mA, pulse, frequency, status, HART®, Modbus

WATERFLUX 3050

Electromagnetic flowmeter for basic water applications

  • Cost-effective measurement of potable, raw and irrigation water
  • Extra isolation of electronics for use in high humidity areas
  • Flange: DN25…600 / 1…24", max. PN16 / ASME Cl 150; others on request
  • 4…20 mA, pulse, frequency, status, HART®, Modbus

Overview

The WATERFLUX 3050 is an electromagnetic flowmeter (EMF) for basic water applications. It offers cost-effective flow measurement in applications where extremely high accuracy, extensive diagnostics or a wide range of digital communication options are not a priority. Its measuring tube with a rectangular and reduced cross-section enables a stable measurement even at low flow rates. Due to the optimized flow profile, the meter is practically independent of interferences from the installation environment. It can be installed virtually anywhere without straight inlet or outlet runs – behind pipe bends, slide valves or a reduction in the pipe.

  • Bi-directional flow measurement over a wide dynamic range (turn down ratio: 1000:1)
  • Unique rectangular sensor design for good low flow performance
  • 0D/0D: No inlet and outlet runs required, no need for measurement chambers
  • Rilsan® coated sensor tube
  • Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
  • Maintenance-free: No moving parts, obstruction or wear
  • On-site verification of flowmeter with OPTICHECK service tool

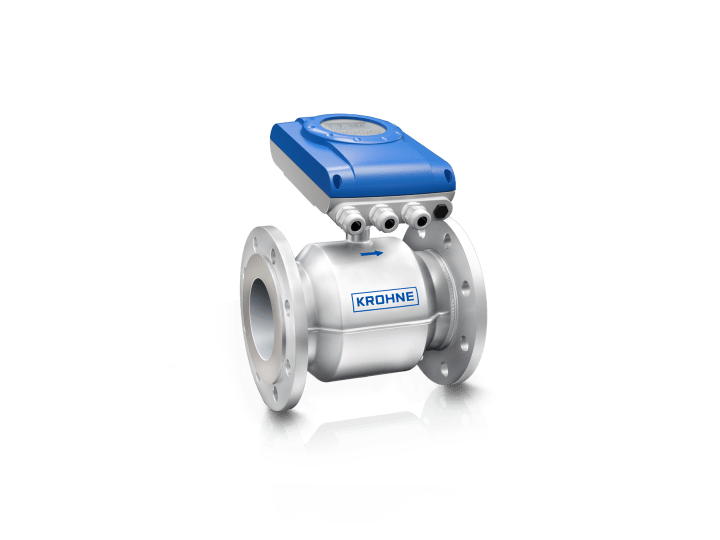

  • Compact or field mounted version
