OPTISONIC 6300 P

Ultrasonic clamp-on flowmeter for temporary flow measurement of liquids

  • Portable, battery-powered meter, for on-site verification of process flows or inline meters at any location
  • -40...+120°C/+248°F
  • For pipes DN15…1500 / 1/2…60"
  • With data logger and USB interface for data transfer

OPTISONIC 6300 P

OPTISONIC 6300 P Ultrasonic clamp-on flowmeter

The OPTISONIC 6300 P is a portable, battery-powered ultrasonic clamp-on flowmeter for temporary flow measurement of (non-)conductive liquids. It can be used at virtually any location and without process interruption or need to cut pipes. Due to its flexibility, the meter is equally suited for comparative measurements on stationary measuring equipment (e.g. pumps, flowmeters etc.) or for use as a short-term replacement of faulty devices. As standard the clamp-on flowmeter is also provided with a measurement option for thermal energy applications.

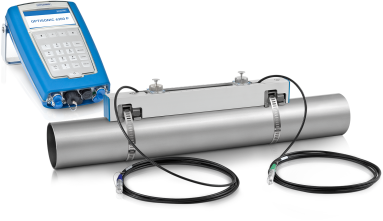

The OPTISONIC 6300 P consists of a combination of one or two clamp-on sensors and one handheld electronic signal converter. The robust clamp-on rail can be easily attached to almost any pipe up to DN1500 / 160". The clamp-on device is powered by the integrated battery (14 hours running time) or the mains adapter supplied. The readings of the meter are shown on the handheld LCD and are stored in the integrated memory for data logging. In addition, all readings can be transferred to a PC via the included USB stick in order to further analyse or store the data.

Product highlights

  • Bi-directional measurement where inline measurement is not possible or desirable
  • Energy measurement option, plus 2 clamp-on Pt100 sensors
  • 2 channels for dual path or dual pipe measurements
  • Incl. full colour graphic display and keypad
  • Cable with I/O connection box available as option
  • Easy sensor mounting, optional with thickness gauge
  • Installation wizard for immediate start-up
  • Efficient regreasing concept, minimal maintenance
  • Robust trunk on wheels and a backpack for easy transport

Typical applications

General

  • General flow related problem solving
  • Checking of inline flowmeters
  • Troubleshooting and temporary replacement of meters
  • On-site verification of process flows
  • Temporary process metering of homogeneous hydrocarbons
  • Leak detection

Water and wastewater industry

  • Flow control in water supply networks
  • Leakage control
  • Pump verification
  • Checking of water wells

Conventional and nuclear power industry

  • Cooling water
  • Boiler feed water

Chemical and other process industries

  • Process start-ups and inspections
  • Purified water, chemicals etc.
  • Cooling systems

HVAC industry

  • Commissioning of HVAC systems
  • Boiler testing
  • Checking and servicing of heating and airco systems
  • Pump control
