BM26A-8000
Magnetic level indicator with level transmitter for liquids in redundant measurement
- Designed for redundant level measurement combining magnetic level indicator and guided radar (TDR), radar (FMCW) or displacer technology
- Measuring range: 0.3…5.5 m / 1...18 ft (others on request)
- Density: 370…1200 kg/m3 / 23.9…74.91 lb/ft3
- Up to +400°C / +752°F; 400 barg / 5801 psig
Overview
The BM26A-8000 is a magnetic level indicator (MLI) for redundant level measurement in liquid applications. It comes in two versions: BM26A-8000-TWIN and BM26A-8000-BI.

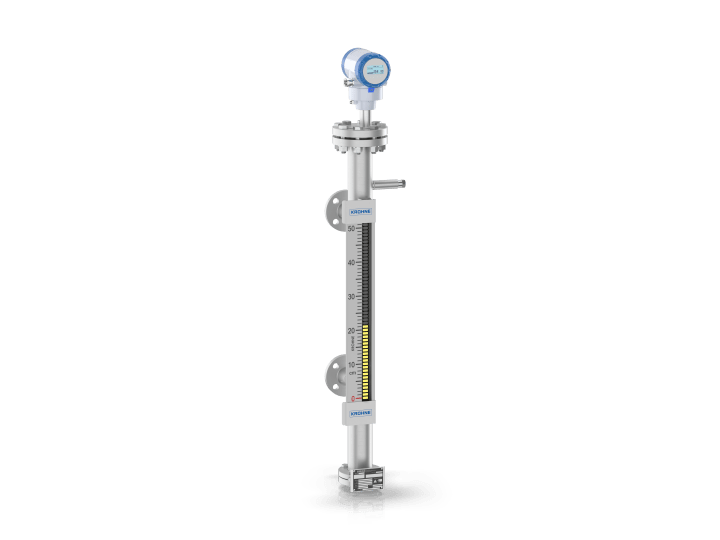

The BM26A-8000-TWIN consists of a double measuring chamber with one chamber featuring a flapper indication and the other one – equipped with a level transmitter (TDR guided radar, FMCW radar or displacer) – acting as a bypass chamber. The BM26A-8000-BI features a unique measuring chamber with two compartments, one for the OPTIFLEX 7200 transmitter probe and one for the float moving next to it.
Features & Options
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Combined technology for redundancy
- Can be fitted with OPTIFLEX 7200 or OPTIFLEX 8200 guided radar (TDR), OPTIWAVE 7400 radar (FMCW) or BW 25 displacer level transmitter
- Also available as TWIN version with a dual bypass chamber connected adjacently
- Rugged metallic design – no maintenance
- Large choice of materials e.g. 316L, 304L, alloy C276, alloy 625
- Highly visible flaps housed in hermetically sealed glass tube (IP68)
- Accuracy from ±2 mm / ±0.08″ with OPTIFLEX and OPTIWAVE level transmitters
