OPTIWAVE 1010

Radar (FMCW) level transmitter for bypass chamber or magnetic level indicator

  • Continuous level measurement of clean liquids
  • 6 GHz radar
  • Measuring range:  0.3...8 m / 0.98...26.2 ft
  • -40...+150°C / +302°F; -1...40 barg / -14.5...580 psig

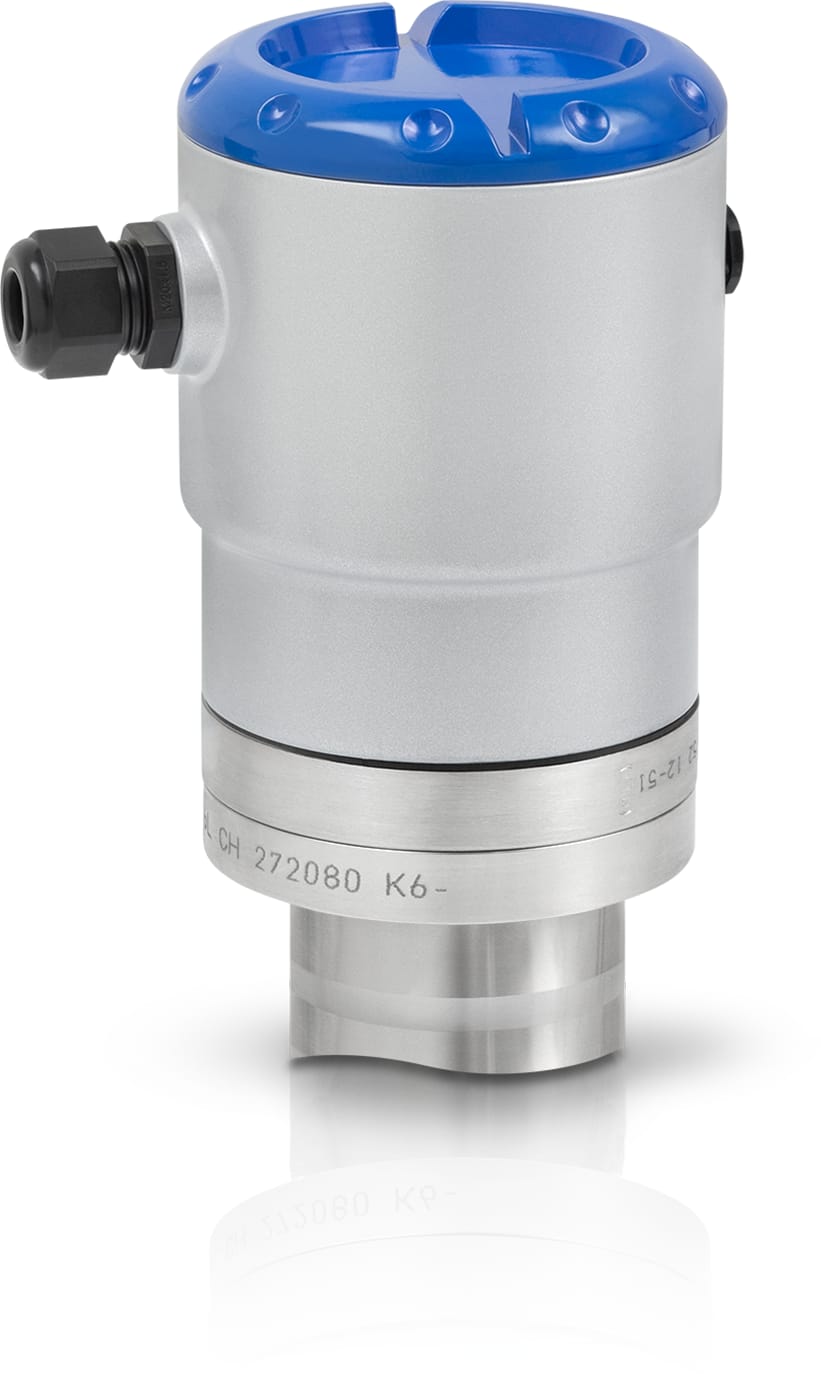

OPTIWAVE 1010 – Version with aluminium housing

Radar (FMCW) level transmitter OPTIWAVE 1010 – Version with aluminium housing

The OPTIWAVE 1010 is a 2-wire 6 GHz radar (FMCW) designed for continuous level measurement of clean liquids. It is welded to a bypass chamber or magnetic level indicator (MLI). This radar is a cost-effective solution for simple applications in industries like the chemical, power, water and wastewater industry. It comes pre-configured and ready to use. The dual process seal system permits the removal of the converter under process conditions. PACTwareTM, HART® DDs and DTMs are provided free of charge with full functionality.

Product highlights

  • Welded to a bypass chamber with optional IP 68 indicator
  • No minimum dielectric constant when equipped with a float
  • Dual process seal system with Metaglas® or Metapeek
  • Aluminium or stainless steel housing
  • Pre-configured in the factory and ready to use (plug & play)
  • Accuracy: ± 5 mm / 0.2" uncertainty
  • 2-wire, 4…20 mA/HART®
  • PACTwareTM, HART® DDs and DTMs provided free of charge with full functionality

Typical applications

  • Clean liquids in bypass chambers or magnetic level indicators, e.g. solvents, alcohols, bases, condensates, liquefied gases, hydrocarbons, hydraulic or motor oil, engine coolants, washing fluids, cooling or drinking water

Related products

Technical data

Product type Level transmitter
Measurement principles Float in bypass, Radar
Level measurement type Continuous measurement
Measured media Liquids
Contact to measured medium No
Interface measurement No
Measuring range (liquids) 0.3…8 m/
0.98…26.2 ft
Process pressure (relative) -1…40 barg/
-14.5…580 psig
Process temperature -40…150°C/
-40…302°F
Wetted parts Polyetheretherketone (PEEK), Austenitic stainless steel (1.4404/316L)
Process seals FKM/FPM, Kalrez® 6375, EPDM
Accuracy (liquids) ±5 mm/
±0.2 in

Approvals/Standards

Certificates/Approvals Ex NEPSI, EAC, IECEx, ATEX
Certificates/Approvals Others NACE
Ingress protection NEMA4X/6P, IP66/67

Communication

Communication outputs (digital) HART®
Communication outputs (analogue) Current (mA)

Process connections

Flange connections EN (1092-1): DN15…50
ASME (B 16.5): 1/2…2"
Thread connections Male:
G1/2
1/2 NPT
