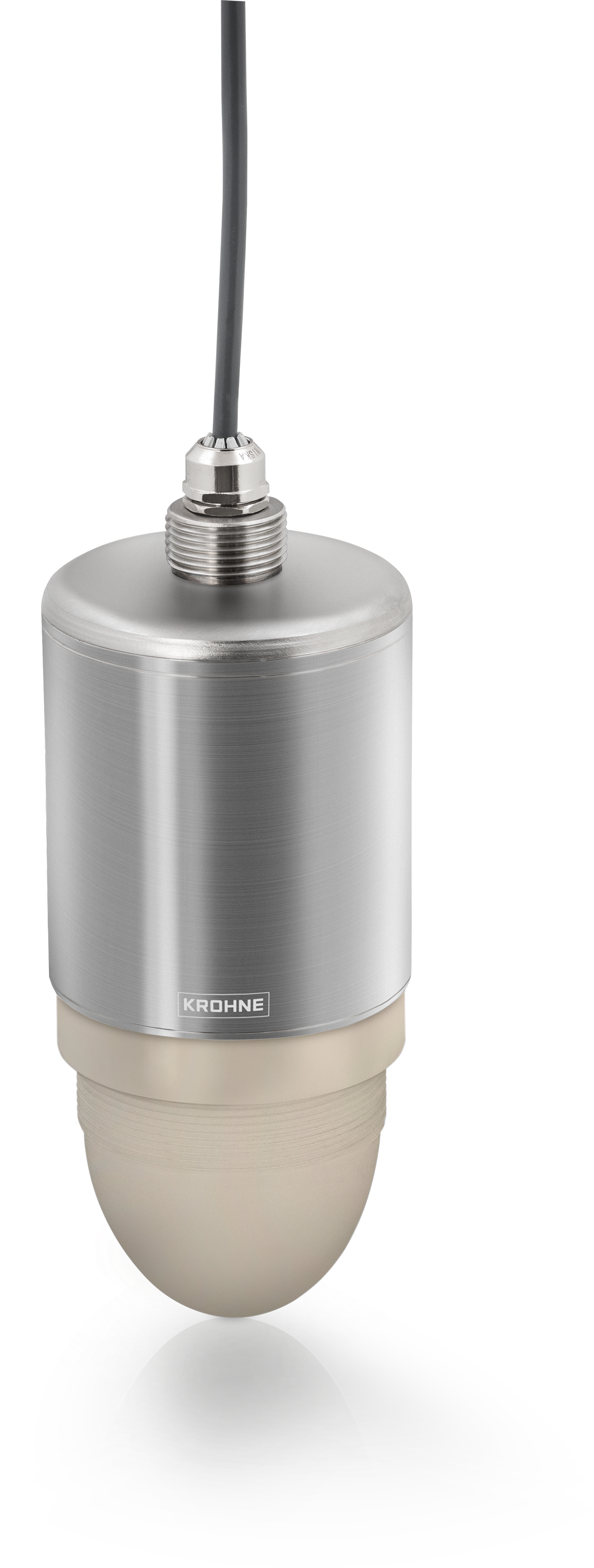

OPTIWAVE 1400

Radar (FMCW) level transmitter for liquids in water and wastewater applications

  • Continuous, non-contact level measurement in tanks, pumping stations, open channels etc.
  • Robust stainless steel (316L) design , waterproof (IP66/68 / NEMA 4X/6)
  • 24 GHz radar, PP Drop antenna
  • Measuring range: 0…20 m / 66 ft

OPTIWAVE 1400

Radar (FMCW) level transmitter for liquids in water and wastewater applications

  • Continuous, non-contact level measurement in tanks, pumping stations, open channels etc.
  • Robust stainless steel (316L) design , waterproof (IP66/68 / NEMA 4X/6)
  • 24 GHz radar, PP Drop antenna
  • Measuring range: 0…20 m / 66 ft

Overview

The OPTIWAVE 1400 is a 2-wire 24 GHz radar (FMCW) level transmitter for liquids in water and wastewater applications. It is equally suited for continuous, non-contact level measurement of water from springs, rivers, lakes or the sea as well as rainwater, wastewater, sludge or other liquids in storage applications. The device features a robust 316L stainless steel housing and comes IP68 / NEMA 4X/6 rated for use in open air installations prone to flooding.

  • 2-wire, loop-powered, with HART®7
  • FMCW technology for greater resolution, just like the new 80 GHz generation
  • Proven PP Drop antenna, insensitive to condensation or deposits
  • Narrow beam angle (8°) for a sharp focus on the medium
  • ±2 mm / ±0.08" accuracy
  • Maintenance-free concept
  • Installation and operation made simple, safe and secure
  • Extensive choice of accessories
  • PACTware™ HART® DD and DTM provided free of charge with full functionality
  • 3-year warranty
