OPTIWAVE 3500

Radar (FMCW) level transmitter for liquids with hygienic requirements

  • Continuous, non-contact level measurement in high and narrow, small and agitated tanks
  • 80 GHz radar, gasket-free Lens antenna
  • Measuring range: 0…50 m / 164 ft
  • -40...+150°C / +302°F; -1...25 barg / -14.5...362 psig
  • Technology icon for 80 GHz radar level measurement

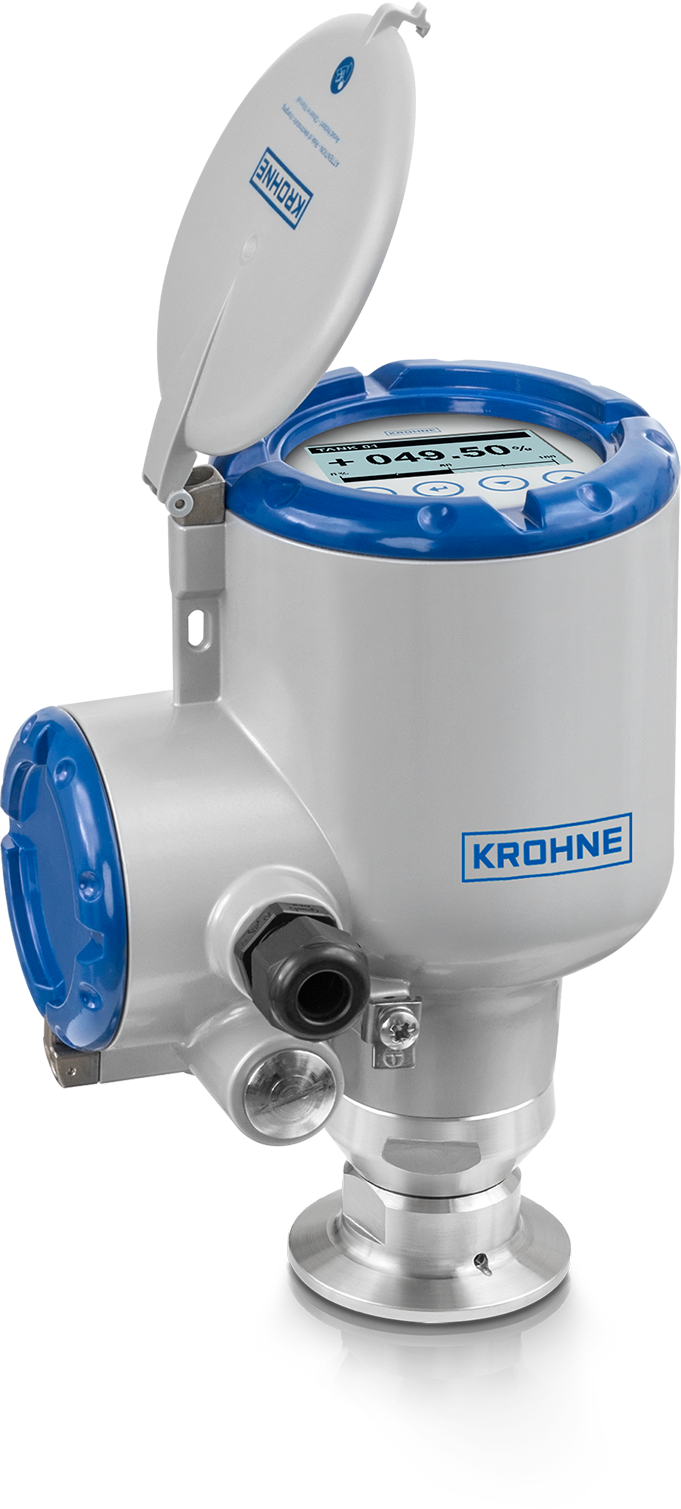

OPTIWAVE 3500 – Version with PEEK antenna and Tri-clamp connection

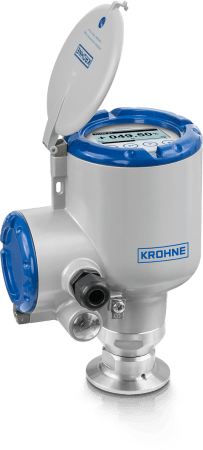

OPTIWAVE 3500 Radar (FMCW) level transmitter  – Version with PEEK antenna and Tri-clamp connection

The OPTIWAVE 3500 is a 2-wire 80 GHz radar (FMCW) level transmitter for liquids in hygienic applications. It is designed for continuous, non-contact level measurement in the food and beverage as well as pharmaceutical industry. The device features a flush-mounted PEEK Lens antenna with a small beam angle and dead zone for precise measurement even in small and narrow tanks with agitators. It is equally suited for use on larger tanks, measuring distances of up to 50 m / 164 ft.

The OPTIWAVE 3500 fits applications with any finished or raw product – from raw milk, wine or juice to solvents. As the radar withstands process temperatures up to +150°C / +302°F and pressures up to 25 barg / 362 psig, it can be used in CIP/SIP cleaning procedures. The OPTIWAVE 3500 offers a large choice of hygienic process connections. It comes with extensive device diagnostics as well as HART®7 communication.

Product highlights

  • 2-wire, loop-powered, with HART®7
  • Small dead zone and beam angle (8° with DN40 / 1.5” antenna, 10° with DN25 / 1” antenna )
  • ± 2 mm / 0.08” accuracy
  • Can measure in fast moving processes (≤60 m/min /| 196.85 ft/min)
  • Empty tank spectrum function eliminates false reflections caused by tank internals
  • Suitable for SIP (Sterilisation In Place) and CIP (Cleaning In Place)
  • Large choice of hygienic process connections
  • Large, backlit LCD screen with 4-button keypad for operation with bar magnet; no need to open the housing cover
  • PACTwareTM, HART® DDs and DTMs provided free of charge with full functionality
  • Extensive sensor and process diagnostics
  • Conform to FDA, EC1935/2004, EC2023/2006 and EU 10/2011
  • 3-year warranty

Typical applications

General

  • Hygienic level applications with finished and raw products
  • For use in/on high and narrow storage tanks, small storage tanks and agitated tanks

Food and Beverage Industry

  • Fruit extract
  • Beverages (soft drinks, beer, wine, fruits juices etc.)
  • Yeast
  • Raw milk, cheese and other dairy products
  • Chocolate
  • Soup
  • Vegetable oil
  • CIP media (incl. slightly corrosive acids and caustic solutions)

Pharmaceutical Industry

  • Purified water
  • Solvents,alcohols, bases
  • Slightly corrosive acids

Technical data

Product type Level transmitter
Measurement principles Radar
Level measurement type Continuous measurement
Measured media Slurries, Pastes, Liquids
Contact to measured medium No
Interface measurement No
Measuring range (liquids) 0…50 m/
0…164 ft
Process pressure (relative) -1…25 barg/
-14.5…362 psig
Process temperature -40…150°C/
-40…302°F
Ambient temperature -40…80°C/
-40…176°F
Wetted parts Polyetheretherketone (PEEK)
Accuracy (liquids) ±2 mm/
±0.08 in

Approvals/Standards

Certificates/Approvals Ex NEPSI, EAC, IECEx, cQPSus, ATEX
Certificates/Approvals Hygienic EHEDG
Certificates/Approvals Others CRN
Ingress protection NEMA4X/6P, IP66/68
NAMUR compliance NE 107, NE 43, NE 21, NE 53

Communication

Communication outputs (digital) HART®

Process connections

Hygienic connections Dairy screw (DIN 11851): DN40, DN50
Varivent®: N
SMS (1145): 51 mm
Tri-Clamp®: 1 1/2", 2"
Clamp (ISO 2852): 25, 33.7, 38, 40, 51
NEUMO BioControl®: DN50
Aseptic screwed union (DIN 11864-1A): DN40, DN50
