OPTISOUND 3010

Ultrasonic level transmitter for basic applications

  • Continuous, non-contact level measurement of liquids and solids
  • Measuring range: 0.25…5 m / 0.82…16.4 ft (liquids), 0.25…2 m / 0.82…6.6 ft (solids)
  • -40…+80°C / +176°F; -0.2…2 barg / -2.9…29 psig
  • Icon/Logo Security Integrity Level 2 (SIL 2)

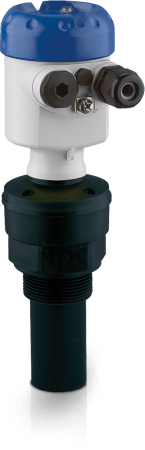

OPTISOUND 3010 C – Version with thread connection

Ultrasonic level transmitter OPTISOUND 3010 C – Version with thread connection

The OPTISOUND 3010 is a 2- or 4-wire ultrasonic level transmitter for basic applications up to 5 m / 16.4 ft. It is designed for continuous measurement of liquids such as rainwater and wastewater as well as bulk solids in nearly all sectors of industry. The level transmitter is particularly suitable for use in small tanks or in open channels for flow measurement.

Product highlights

  • Continuous, non-contact level measurement
  • Maintenance free operation
  • Measures independent of varying medium characteristics
  • Suitable for profile measurement on conveyor belts
  • Suitable for use in corrosive environments
  • Available with optional mounting bracket for easy alignment of the sensor

Typical applications

  • Open basins, channels, sumps and sludge containers
  • Water/wastewater basins
  • Open channels for flow measurement
  • Profile measurement on conveyor belts
  • Small silos and storage tanks for solids
  • Small storage tanks with slightly corrosive acids
  • Applications with hazardous areas and SIL requirement

Applications

Technical data

Measurement principlesUltrasonic
Level measurement typeContinuous measurement
Measured mediaBulk solids, Granulates, Liquids, Pastes, Powders, Slurries, Solids
Contact to measured mediumNo
Interface measurementNo
Measuring range (liquids)0.25…5 m/
0.82…16.4 ft
Measuring range (solids)0.25…2 m/
0.82…6.6 ft
Process pressure (relative)-0.2…2 barg/
-2.9…29 psig
Process temperature-40…80°C/
-40…176°F
Wetted partsPolyvinylidene fluoride (PVDF)
Process sealsEthylene propylene diene monomer (EPDM), Fluorocarbon-based synthetic rubber (FKM/FPM), Kalrez® 6375, PFA
Accuracy (liquids)±4 mm/
±0.16 in
Accuracy (solids)±4 mm/
±0.16 in

Approvals/Standards

Certificates/Approvals ExATEX
Certificates/Approvals SafetySIL2
Certificates/Approvals OthersEAC
Ingress protectionIP66/67, NEMA4/4X/6

Communication

Digital outputsHART®
Analogue outputs4…20 mA

Process connections

Thread connectionsMale:
G1 ½
1 ½ NPT
