OPTIBAR PC 5060

Pressure transmitter for advanced process pressure and level applications

  • Robust design, with corrosion and abrasion resistant ceramic diaphragm
  • 25 mbar…100 bar / 0.73…1450 psi; max. +150°C / +302°F
  • Various threads, flanges, hygienic and other connections
  • 2-wire, 4…20 mA, HART®, FF, Profibus-PA, Bluetooth®
  • Icon/Logo for Ceramic durability

OPTIBAR PC 5060

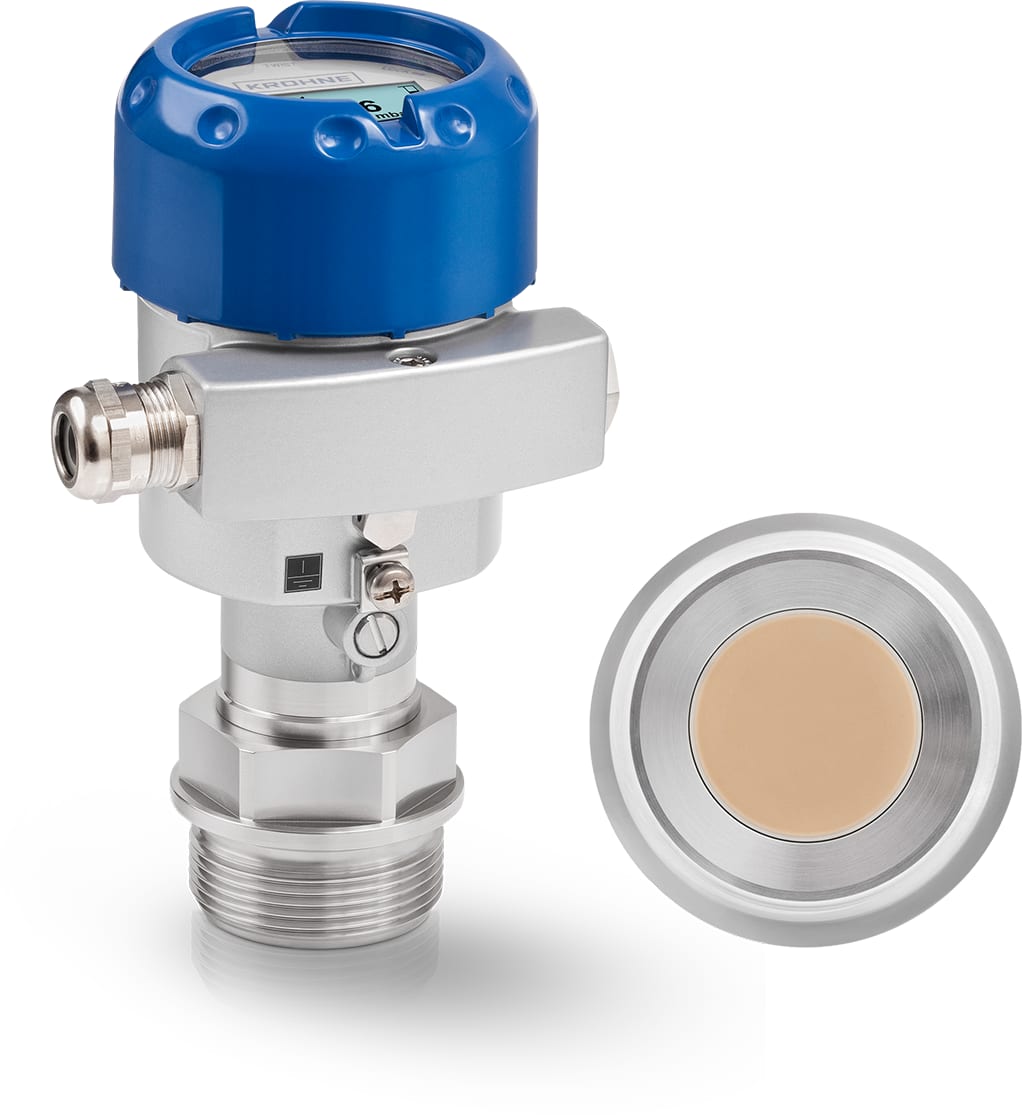

OPTIBAR PC 5060 Pressure transmitter

The OPTIBAR PC 5060 is a pressure transmitter for process pressure and hydrostatic level measurement in all kinds of process applications. It is designed for absolute and gauge pressure measurement in open tanks and – as dual version for electronic differential pressure measurement – also in closed vessels. The pressure device features a ceramic capacitive measuring cell that guarantees maximum overload and vacuum resistance for high plant availability.

The measuring cell can be built into the process absolutely flush and the radially recessed position of the gasket provides additional protection in abrasive media. It is resistant to sudden temperature shocks and can handle operating temperatures of up to +150°C/ +302°F. The OPTIBAR PC 5060 comes with robust plastic and aluminium housing or hygienic stainless steel versions (incl. ingress protection IP69k). It can be used in hazardous areas and Safety Instrumented Systems (SIS). The pressure transmitter comes with various diagnostics and digital communication options.

Product highlights

  • Modular design: converter platform for all applications
  • Electronic differential pressure measurement
  • Highest overload and vacuum resistance
  • Wear-free measuring cell for less service and maintenance costs
  • Extremely quick step response times <85 ms
  • Various housing materials available: plastic, aluminium, stainless steel (precision casting or electro-polished)
  • Quick setup for all applications
  • Extensive diagnostic and parameterization functions on the display and adjustment module or the user-friendly and free DTMs
  • Wireless device commissioning, verification and monitoring with the OPTICHECK Pressure Mobile app
  • Ex ia, Ex d, Ex t approvals
  • SIL 2/3 certified by TÜV Rheinland

Typical applications

General

  • Overload resistant absolute and gauge pressure measurement
  • Level measurement in batch and storage tanks

Chemical, petrochemical and other process industries

  • Monitoring of supply pressure in pipelines
  • Dry-run protection of delivery pumps
  • Gauge pressure monitoring of inert gas layers
