OPTISENS COND 1200

Conductive conductivity sensor for water, wastewater, process water or pure water

  • For use with analytical transmitter
  • Process connection: G12, G34, G1, 34 NPT (male)
  • 0.05 μS/cm…20 mS/cm; Max. +135°C / +275°F
  • With two stainless steel, titanium or graphite electrodes and Pt100 for temperature compensation

OPTISENS COND 1200 – Standard version

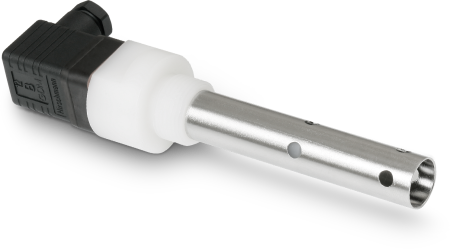

Conductivity sensor OPTISENS COND 1200 – Standard version

The OPTISENS COND 1200 is a sensor for conductive conductivity measurement in all standard applications. With its two stainless steel electrodes it is particularly suitable for low-contaminated, non-corrosive media such as pure water, steam and cooling water. The sensor is also available as a special industrial version with graphite or titan electrodes for media separation, drinking water purification and wastewater checks/treatment. The OPTISENS COND 1200 operates with the MAC 100 or any suitable analytical transmitter.

Product highlights

  • Wide dynamic range
  • Large range of cell constants
  • Variety of electrode materials
  • Robust sensor design, long lifespan
  • Low maintenance costs and a long life cycle
  • Available with 4-pin right-angle plug (Hirschmann) connector or attached cable up to 10 m / 33 ft
  • With robust PVDF body material
  • With integrated temperature sensor
  • For connection to the MAC 100 or any suitable analytical transmitter
  • Various mounting assemblies for easy installation and reliable handling

Typical applications

Water industry

  • Monitoring of water quality
  • Process control of water treatment
  • Filter monitoring

Chemical and other process industries

  • Quality control
  • Process control in water treatment
  • Filter monitoring

Food and beverage industry

  • Process control in water treatment
  • Filter monitoring
  • Monitoring of condensate for flash pasteurisers
