OPTITEMP TCA-S11

Thermocouple (TC) temperature assembly for lower temperature applications

  • Thread connection
  • DIN-style based on form 8, welded multipart thermowell with straight tip
  • -40…+150°C / +302°F

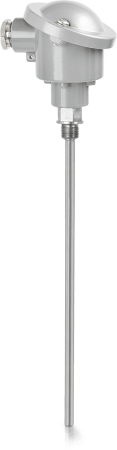

OPTITEMP TCA-S11 – Standard version

Thermocouple (TC) temperature assembly OPTITEMP TCA-S11 – Standard version

The OPTITEMP TCA-S11 is a threaded thermocouple (TC) assembly with a straight welded multipart thermowell (based on form 8). The industrial temperature assembly can be screwed directly to the process pipe or tank. It is predominantly used in applications with lower process temperatures up to +150°C / +302°F. The TC sensor is suitable for temperature measurement of liquids and gases, at low to medium pressures and flow velocities. It is available with ATEX and IECEx approvals.

Product highlights

  • Temperature measurement of liquids and gases
  • Thermowell material: 1.4404 / 316L or 1.4571 / 316Ti
  • Standard or customised lengths
  • Different connection heads available (IP54…IP68)
  • With optional temperature transmitter
  • Available as intrinsically safe: ATEX, IECEx

Typical applications

  • Standard applications with lower temperatures up to +150°C / +302°F
  • Temperature measurement in pipes and tanks, at low to medium pressures and flow velocities
  • Suitable for applications where assemblies complying with DIN standards are required
  • Basic measuring tasks in various industries:
    • Chemical and petrochemical
    • Oil and gas
    • Power generation
    • Machinery and apparatus / OEM
    • Iron and steel
    • Pulp and paper

Technical data

Measurement principlesThermocouple (TC)
Measured mediaGases, Liquids
Measuring pointPipe, Tank
Temperature sensor connection type optionCeramic terminal block, Flying wires, Temperature transmitter
Measuring insert replaceableYes
Sensor mountingScrew-in
Thermowell diametersØ10 mm / 0.39", Ø11 mm / 0.43", Ø12 mm / 0.47", Ø9 mm / 0.35"
Assembly with thermowellYes
Measuring insert typeReplaceable spring loaded mineral isolated measuring insert OPTITEMP TC 100
Thermowell tip designStraight
Thermowell typeMultipart welded
Thermowell form (according to DIN 43772)Form 8
Wetted partsAustenitic stainless steel (1.4404/316L), Austenitic stainless steel (1.4571/316Ti)

Approvals/Standards

Certificates/Approvals ExATEX, IECEx

Process connections

Thread connectionsMale:
G½, G¾, G1
½ NPT, ¾ NPT
