OPTITEMP TCA-TS32

Thermocouple (TC) temperature assembly for higher flow velocities and pressures

  • Thread connection
  • DIN-style based on form 5, welded multipart thermowell with straight tip
  • -40…+600°C / +1100°F

OPTITEMP TCA-TS32 – Standard version

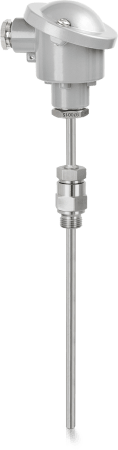

Thermocouple (TC) temperature assembly OPTITEMP TCA-TS32 – Standard version

The OPTITEMP TCA-TS32 is a threaded thermocouple (TC) assembly with a straight welded multipart thermowell (DIN form 5). The temperature assembly for advanced requirements is particularly suitable for use in pipes, tanks or reactors where a high mechanical stress resistance of the thermowell is required (e.g. petrochemical applications). It is designed for temperature measurement of liquids, gases and steam up to +600°C / +1100°F.

The OPTITEMP TCA-TS32 features a modular design with a threaded standard neck tube that can be exchanged easily, even under operating conditions. This makes the temperature assembly very flexible. If it has been damaged from the outside, servicing can be carried out without process shut down. The thermocouple assembly can be combined with most thermowells. It is available with ATEX and IECEx approvals.

Product highlights

  • Temperature measurement of liquids, gases and steam
  • Modular design: threaded standard neck tube for easy exchange under operating conditions
  • Thermowell material: 1.4404 / 316L or 1.4571 / 316Ti
  • Standard or customised lengths
  • Different connection heads available (IP54…IP68)
  • With optional temperature transmitter
  • Available as intrinsically safe: ATEX, IECEx

Typical applications

  • Applications with advanced requirements
  • Temperature measurement in pipes, tanks or reactors at higher flow velocities and pressures
  • Suitable for applications where assemblies complying with DIN standards are required
  • Primarily used in the petrochemical industry, the oil and gas industry as well as in industries such as:
    • Chemical
    • Power generation
    • Machinery and apparatus / OEM
    • Iron and steel
    • Pulp and paper

Technical data

Measurement principlesThermocouple (TC)
Measured mediaGases, Liquids, Steam
Measuring pointPipe
Temperature sensor connection type optionCeramic terminal block, Flying wires, Temperature transmitter
Measuring insert replaceableYes
Sensor mountingScrew-in
Thermowell diametersØ10 mm / 0.39", Ø11 mm / 0.43", Ø12 mm / 0.47", Ø9 mm / 0.35"
Assembly with thermowellYes
Measuring insert typeReplaceable spring loaded mineral isolated measuring insert OPTITEMP TC 100
Thermowell tip designStraight
Thermowell typeMultipart welded
Thermowell form (according to DIN 43772)Form 5
Wetted partsAustenitic stainless steel (1.4404/316L), Austenitic stainless steel (1.4571/316Ti)

Approvals/Standards

Certificates/Approvals ExATEX, IECEx

Process connections

Thread connectionsMale:
G½, G¾, G1
½ NPT, ¾ NPT
