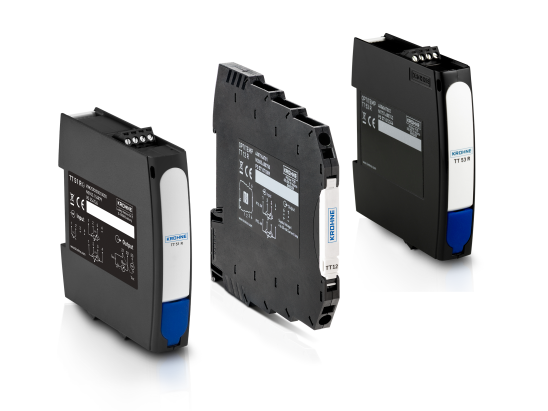

Rail-mounted temperature transmitters

For mounting on rails in a control cabinet

  • With galvanic isolation and various diagnostics (error correction, sensor isolation and break monitoring etc.)
  • From standard to high accuracy, Ex or SIL
  • Different configuration options, including NFC and Bluetooth®
Filter
8 products
Product name
Industrial requirements
Inputs
Outputs (wire design)
Outputs (analogue)
Outputs (digital)
Galvanic isolation
Configuration method

OPTITEMP TT 12 R

Rail-mounted temperature transmitter with RTD or TC input, spring terminal and compact 6 mm design

OPTITEMP TT 53 R

Rail-mounted temperature transmitter with universal input, galvanic isolation, HART® and wireless communication

  • Input: RTD, TC, mV, Ω
  • Output: 2-wire, 4…20 mA/HART®7
  • Programmable via PC, HART® handheld or the OPTICHECK Temperature Mobile app using Bluetooth® or NFC
  • Accuracy: ±0.08%

OPTITEMP TT 51 R

Rail-mounted temperature transmitter with universal dual input, galvanic isolation, HART® and SIL

  • Input: RTD, TC, mV, Ω
  • Output: 2-wire, 4…20 mA/HART®
  • Programmable via PC or HART® handheld communicator
  • Accuracy: ±0.05%

OPTITEMP TT 33 R

Rail-mounted temperature transmitter with universal inputs and galvanic isolation

  • Input: RTD, TC, mV, Ω
  • Output: 2-wire, 4…20 mA
  • Programmable via PC or via the OPTICHECK Temperature Mobile app using Bluetooth® or NFC
  • Accuracy: ±0.08%

OPTITEMP TT 40 R

Rail-mounted temperature transmitter with universal inputs and galvanic isolation

  • Input: RTD, TC, mV, Ω
  • Output: 2-wire, 4…20 mA
  • PC programmable
  • Accuracy: ±0.05%

OPTITEMP TT 32 R

Rail-mounted temperature transmitter with universal inputs and high galvanic isolation

  • Input: RTD, TC, mV, Ω
  • Output: 4-wire, 0/4…20 mA or 0…10 VDC
  • PC programmable
  • Accuracy: ±0.1%

OPTITEMP TT 31 R

Rail-mounted temperature transmitter with universal inputs, dual channel and high galvanic isolation

  • Input: RTD, TC, mV, Ω
  • Output: 2-wire, 4…20 mA
  • PC programmable
  • Accuracy: ±0.1%

OPTITEMP TT 22 R

Rail-mounted temperature transmitter with RTD input

  • Input: 1 x Pt100, 3-wire
  • Output: 2-wire, 4…20 mA
  • PC programmable
  • Accuracy: ±0.1%
