KBT 70

Bluetooth gateway for continuous data transfer

  • 16 digital and 2 analogue inputs and outputs
  • Based on Bluetooth 4.0: range of max.  200 m / 218.7 yd
  • Mains powered and pre-wired system with fixed pair modules in rugged boxes (IP66)
  • For fast and small networks

KBT 70 Bluetooth gateway

KBT 70 Bluetooth gateway

KBT 70 is a gateway for data communication via Bluetooth. The multiplexer (MUX) set offers wireless remote transmission of flow, conductivity, pressure, temperature and analytical readings using 2 MUX modems (no IP and configuration effort). The transmission of further digital operating status values is also possible. It has a transmission distance of up to 200 m / 218.7 yd.

Product highlights

  • For fast and small networks
  • Radio link diagnostics via LED bar graph
  • Suitable for time-critical signal transmission
  • Various communication options
  • Plug and play – startup without configuration
  • Available with rugged control cabinet (IP66)
  • With omnidirectional antennas with 1.5 m / 4.9 ft cable

Typical applications

  • Data transmission for remotely installed flowmeters, level transmitters, pressure transmitters, analytical sensors or systems, e.g.:

Components

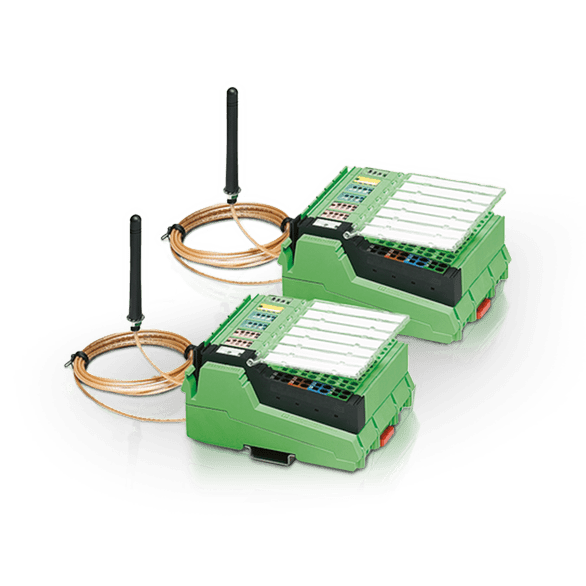

Wireless set ILB BT ADIO MUX-OMNI
  • Company Logo PHOENIX CONTACT

ILB BT ADIO MUX-OMNI

Wireless set

  • Bluetooth 4.0 technology
  • High number of channels in compact housing
  • Suitable for time-critical signal transmission (<10 ms)
View product
