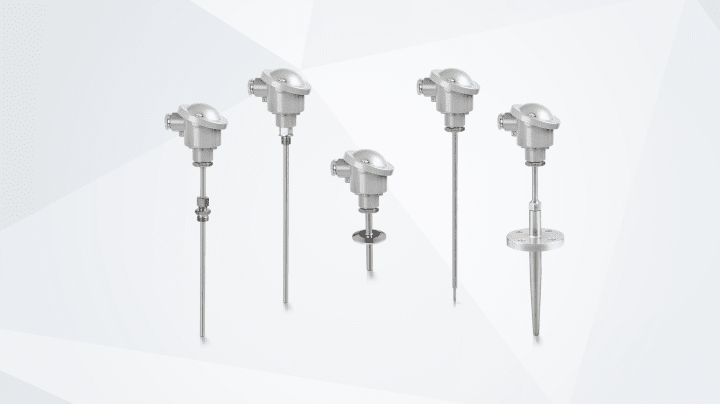

Resistance (RTD) temperature assemblies

For standard applications as well as applications with high pressures and flow velocities or hygienic requirements

  • Temperature range: -40…+600°C / +1100°F for RTD
  • From variants with DIN- and ASME-style thermowells to spring-loaded versions for surface measurement or hygienic designs
  • Flanged, threaded, plug-in, weld-in, strap-on and clamp variants
Product name
Industrial requirements
Specific requirements
Sensor mounting
Assembly with thermowell
Temperature assembly design
Thermowell tip design
Measured media
Showing 12 of 36 products

New

OPTITEMP TRA-H61

Resistance (RTD) temperature assembly for hygienic applications

  • G½ thread with VARIVENT®, DIN 11851, SMS 1145 and other hygienic adapters
  • Stainless steel thermowell with reduced tip (FDA, EC1935/2004 conform; optional IP69)
  • -50…+200°C / -58…+390°F
New

OPTITEMP TRA-H65

Resistance (RTD) temperature assembly for hygienic applications

  • Welded clamp connection
  • Stainless steel thermowell with reduced tip (3A certified, FDA, EC1935/2004 conform; optional IP69)
  • -50…+200°C / -58…+390°F

OPTITEMP TRA-F13

Resistance (RTD) temperature assembly for standard applications

  • Flange connection
  • DIN-style based on form 2F, welded multipart thermowell with straight tip
  • -40…+600°C / +1100°F

OPTITEMP TRA-F23

Resistance (RTD) temperature assembly for standard applications

  • Flange connection
  • DIN-style based on form 2F, welded multipart thermowell with reduced tip
  • -40…+600°C / +1100°F

OPTITEMP TRA-F42

Resistance (RTD) temperature assembly for standard applications

  • Flange connection
  • DIN-style based on form 3F, welded multipart thermowell with tapered tip
  • -40…+600°C / +1100°F

OPTITEMP TRA-G10

Resistance (RTD) temperature assembly for surface temperature measurement in industrial applications

  • Hose clamp connection
  • Spring-loaded block tip, neck tube and stainless steel sheath
  • -50…+200°C / -58…+390°F

OPTITEMP TRA-G20

Resistance (RTD) temperature assembly for surface temperature measurement on double-walled pipes or similar applications

  • Thread connection
  • Long spring-loaded straight tip, neck tube and stainless steel sheath
  • -50…+150°C / -58…+300°F

OPTITEMP TRA-H10

Resistance (RTD) temperature assembly for hygienic applications

  • Hygienic clamp or VARIVENT® connection
  • Non-replaceable measuring insert and stainless steel thermowell (FDA, EC1935/2004 conform)
  • -50…+200°C / -58…+390°F

OPTITEMP TRA-H20

Resistance (RTD) temperature assembly for hygienic applications

  • Hygienic clamp or VARIVENT® connection
  • Replaceable measuring insert and stainless steel thermowell (FDA, EC1935/2004 conform)
  • -200…+600°C / -330…+1100°F

OPTITEMP TRA-H30

Resistance (RTD) temperature assembly for hygienic applications

  • Hygienic clamp or VARIVENT® connection
  • Non-replaceable measuring insert and stainless steel sensor sheath (FDA, EC1935/2004 conform)
  • -40…+150°C / +302°F

OPTITEMP TRA-P10

Resistance (RTD) temperature assembly for standard applications

  • Compression fitting connection
  • DIN-style based on form 2, welded multipart thermowell with straight tip
  • -40…+600°C / +1100°F

OPTITEMP TRA-P14

Resistance (RTD) temperature assembly for standard applications or use in existing thermowells

  • Compression fitting connection
  • DIN-style, without thermowell
  • -40…+600°C / +1832°F
